Model-1200D AT
Manufacturer & Exporters of

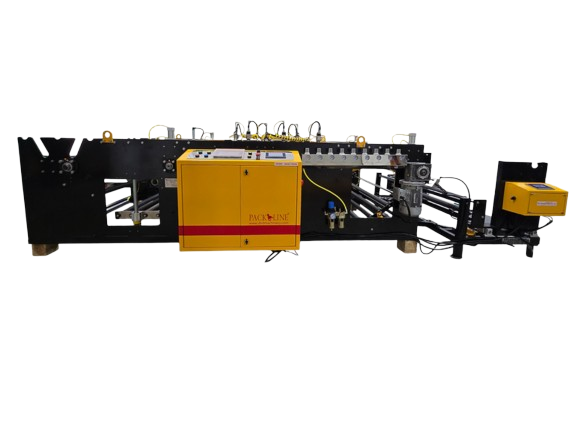

Mulch Film Punching Machine - MFPM 1200D AT
The Mulch Film Punching Machine – MFPM 1200D AT is a state-of-the-art automatic machine engineered for high-speed, high-precision film processing tasks. Designed with advanced automation and durability in mind, it is ideal for manufacturers involved in converting, packaging, or agricultural film production. Its intelligent design enhances productivity while maintaining top-quality output.Equipped with a powerful motor system and advanced servo controls, the MFPM-1200D AT operates at high speeds without compromising accuracy. It significantly boosts output for large-scale production facilities, making it a reliable choice for demanding industrial environments.
This model features a fully automatic system that handles tasks such as feeding, cutting, punching, or sealing, depending on its configuration. Automation reduces manual intervention, increases consistency, and minimizes labor costs—ideal for 24/7 production lines.
Description of MFPM 1200D AT
With accurate sensors and real-time monitoring, the machine ensures precise alignment, tension control, and material handling. Whether working with thin or thick films, the MFPM 1200D AT delivers consistent and high-quality results with minimal waste.
MFPM 1200D AT is compatible with a wide range of film types, including LDPE, LLDPE, HDPE, and biodegradable films. This makes it suitable for various sectors including agriculture, packaging, courier bag production, and more.
Features of MFPM 1200D AT
- Performance Specifications
- Durability
- Versatility
- Energy Efficiency
- Maintenance Access
- Customization Options
Videos
Specifications of MFPM 1200D AT
| Model | Unit | 1200D4W | 1500D4W |
|---|---|---|---|
| Size of Film Min/Max. | mm | 800mm/1200mm | 1000mm/1500mm |
| Unwinder Roll Dia Max. | mm | 600mm | 600mm |
| Unwinder Roll Weight | kg | 300-350kg | 300-350kg |
| Film Thickness Min/Max. | Micron | 15/50 | 15/50 |
| Machine Line Speed | MPM | 50 to 60 | 50 to 60 |
| Machine Output Speed | MPM | 180 to 200 | 180 to 200 |
| Punching Tool Size | mm | 55 & 65 & 75 Standard | 55 & 65 & 75 Standard |
| No. of Punch | Nos | 6 | 6 |
| Electronic Edge Guide Unit | Yes | Yes | |
| Auto Stop at Meter Completed | Yes | Yes | |
| Rewind Roll Length | Mtr | Max 1600 | Max 1600 |
| Rewind Roll Dia Max. | MM | 250 | 250 |
| Material to use | Mulch | Mulch | |
| Total Load | KW/HP | 6KW/8HP | 6KW/8HP |
| Dimension | L x W x H (mm) | 5300x2300x1500 | 5300x2300x1500 |
