Manufacturer & Exporters of

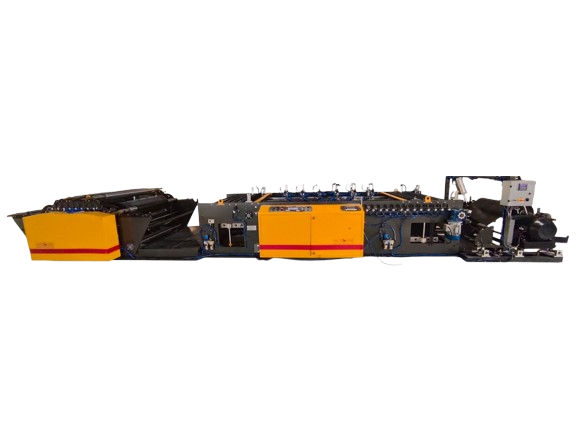

Auto Winder Mulch Film Punching Machine
The Auto Winder Mulch Film Punching Machine is a high-performance industrial machine designed for punching precise holes in mulch films used in agricultural applications. This machine plays a critical role in preparing mulch films that help in conserving soil moisture, controlling weeds, and improving crop yield. It offers automated operation for continuous, high-speed production.This machine works by feeding mulch film rolls through a punching unit equipped with sharp, durable dies. The dies punch holes of various shapes and sizes based on agricultural requirements. An integrated auto-winder then collects the punched film into neatly rolled outputs, ready for field use or packaging.
The machine is capable of processing a wide range of film materials including LDPE, LLDPE, HDPE, and biodegradable mulch films. It supports both single-layer and multi-layer films, allowing versatility for various climates and soil types. Film thicknesses and widths can be adjusted to meet specific crop or customer requirements.
Description of Auto Winder Mulch Film Punching Machine
Our Auto Winder Punching Machine is designed for seamless and efficient winding of mulch films and other plastic sheets, ensuring smooth and automatic roll formation with minimal manual intervention. Ideal for optimizing production speed and maintaining consistent quality, the Auto Winder is a reliable choice for maximizing efficiency in your operations.
The Auto Winder Mulch Film Punching Machine is designed for high-speed, continuous operation. It can punch thousands of holes per minute while maintaining perfect alignment and film integrity. The automatic winder system ensures seamless roll transitions, reducing downtime and increasing productivity.




Features of Auto Winder Mulch Film Punching Machine
- Automatic Winding System
- High-Speed Punching
- Customizable Punching Dies
- PLC Control Panel
- Consistent Hole Spacing
- Adjustable Film Width and Thickness
Videos
Specifications of Auto Winder Mulch Film Punching Machine
Model | Unit | 1200AW |
---|---|---|
Size of Film Min/Max. | mm | 800mm/1200mm |
Unwinder Roll Dia Max. | mm | 600mm |
Unwinder Roll Weight | kg | 800-1000kg |
Film Thickness Min/Max. | Micron | 15/50 |
Machine Line Speed | MPM | 80 to 100 |
Machine Output Speed | MPM | 140 to 160 |
Punching Tool Size | mm | 55 & 65 & 75 Standard |
No. of Punch | Nos. | 10 |
Electronic Tension Controller | Yes/No | Yes |
Electronic Edge Guide Unit | Yes/No | Yes |
Auto Stop at Meter Completed | Yes/No | Yes |
Rewind Roll Length | Mtr | Max 1600 |
Rewind Roll Dia Max. | MM | 300 |
Material to use | 0 | Mulch |
Total Load | KW/HP | 12KW/16HP |
Dimension | L x W x H (mm) | 9000x2600x1500 |
